Product Summary

The kp-1608sgc is a 1.6x0.8mm SMD chip LED lamp. The hyper red source color device is made with DH InGaAIP on GaAs substrate Light Emitting Diode.

Parametrics

kp-1608sgc absolute maximum ratings: (1)power dissipation: 170mW; (2)DC forward current: 30mA; (3)peak forward current: 185mA; (4)reverse voltage: 5V; (5)operating temperature: -40℃ to +85℃; (6)storage temperature: -40℃ to +85℃.

Features

kp-1608sgc features: (1)1.6mm×0.8mm SMT LED, 1.1mm THICKNESS; (2)Low power consumption; (3)Wide viewing angle; (4)Ideal for backlight and indicator; (5)Various colors and lens types available; (6)Package: 2000pcs/reel.

Diagrams

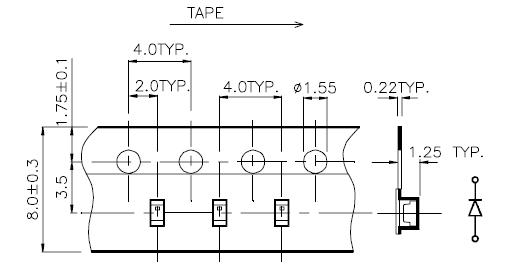

kp-1608sgc block diagram
