Product Summary

The pc901v0nszxf is a Digital Output, Normal ON Operation DIP 6 pin OPIC Photocoupler. It is ideal for: (1)Programmable controllers; (2)PC peripherals; (3)Electronic musical instruments.




Parametrics

pc901v0nszxf absolute maximum ratings: (1)Forward current IF: 50 mA; (2)Peak forward current IFM: 1 A; (3)Reverse voltage VR: 6 V; (4)Power dissipation P 70; (5)Supply voltage VCC: 16 V; (6)High level output voltage VOH: 16 V; (7)Power dissipation PO: 150 mW; (8)Low level output curre IOL: 50 mA; (9)Power dissipation PO: 150 mW; (10)Total power dissipation Ptot: 170 mW; (11)Operating temperature Topr: −40 to +125°C; (12)Storage temperature Tstg: −40 to +125°C; (13).

Features

pc901v0nszxf features: (1)6 pin DIP package; (2)Double transfer mold package (Ideal for Flow Soldering); (3)Normal ON operation, open collector output; (4)TTL and LSTTL compatible output; (5)Operating supply voltage (VCC=3 to 15 V); (6)Isolation voltage (Viso(rms): 5.0 kV); (7)Lead-free and RoHS directive compliant.

Diagrams

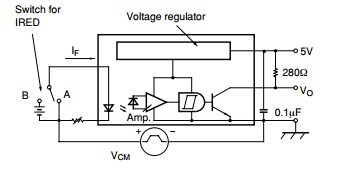

pc901v0nszxf pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC901V0NSZXF
PC901V0NSZXF
Sharp Microelectronics
High Speed Optocouplers Normal On output PC900V0NSZXF
Data Sheet
Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
PC90
PC90

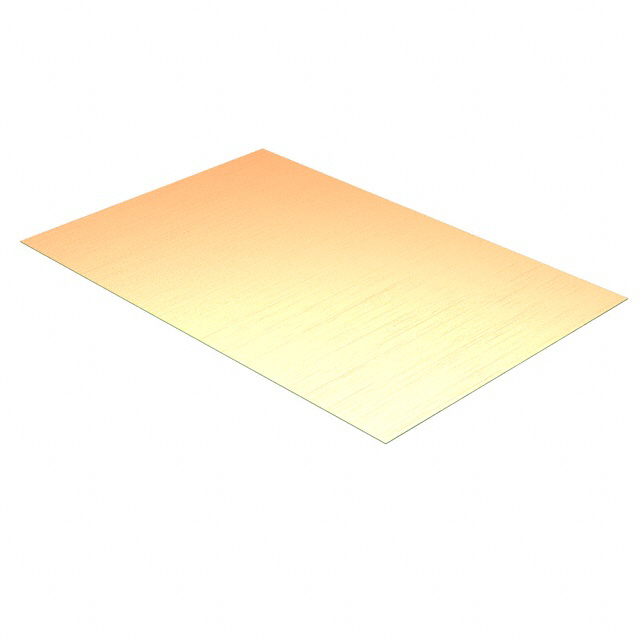

PCB COPPER CLAD 3 X 4.5" 2 SIDE
