Product Summary
The si3056-d-fsr is an integrated direct access arrangement (DAA) with aprogrammable line interface to meet global telephone line requirements. Available in two 16-pin small outline packages. The si3056-d-fsr eliminates the need for an analog front end (AFE), isolation transformer, relays, opto-isolators, and a 2- to 4-wire hybrid. The si3056-d-fsr dramatically reduces the number of discrete components and cost required to achieve compliance with global regulatory requirements. The si3056-d-fsr interfaces directly to standard modem DSPs. The applications of the si3056-d-fsr include V.92 modems, Voice mail systems, Multi-function printers, Set-top boxes, Fax machines, Internet appliances, Personal digital assistants.
Parametrics
si3056-d-fsr absolute maximum ratings: (1)DC Supply Voltage, VD: –0.5 to 3.6 V; (2)Input Current, Digital Input Pins, IIN: ±10 mA; (3)Digital Input Voltage, VIND: –0.3 to (VD + 0.3) V; (4)Operating Temperature Range, TA: –40 to 100 ℃; (5)Storage Temperature Range, TSTG: –65 to 150 ℃.
Features
si3056-d-fsr features: (1)Programmable line interface; (2)80 dB dynamic range TX/RX paths; (3)Integrated codec and 2- to 4-wire hybrid; (4)Integrated ring detector; (5)Type I and II caller ID support; (6)Line voltage monitor; (7)Loop current monitor; (8)Polarity reversal detection; (9)Programmable digital gain; (10)Clock generation; (11)Pulse dialing support; (12)Overload detection; (13)3.3 V power supply; (14)Direct interface to DSPs; (15)Serial interface control for up to eight devices; (16)>5000 V isolation; (17)Proprietary isolation technology; (18)Parallel handset detection; (19)+3.2 dBm TX/RX level mode; (20)Programmable digital hybrid for near-end echo reduction; (21)Low-profile SOIC packages; (22)Lead-free/RoHS-compliant packages available.

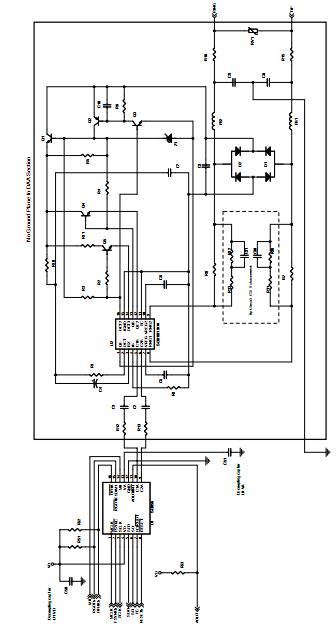

Diagrams
