Product Summary
The stk795-844 is a Chopper Type Voltage Regulator.
Parametrics
stk795-844 absolute maximum ratings: (1)Maximum DC Input Voltage, Vin max: 40 V; (2)Maximum Output Current, IO max: 3 A; (3)Operating Case Temperature, Tc: 105 ℃; (4)Junction Temperature, Tj: 150 ℃; (5)Storage Temperature, TSTG: -30 to +150 ℃.
Features
stk795-844 features: (1)Self-oscillation type chopper regulator power IC using Sanyou’s original IMST; (2)The stk795-844, being a 5 V chopper IC, is more advantageous in the following points as compared with series regulator ICs; (3)Functional trimming is used to set 5 V output with high accuracy; (4)Cutoff function to cut off output voltage by external signal; (5)Contains a transistor for overcurrent protector and possible to set the protection level externally.

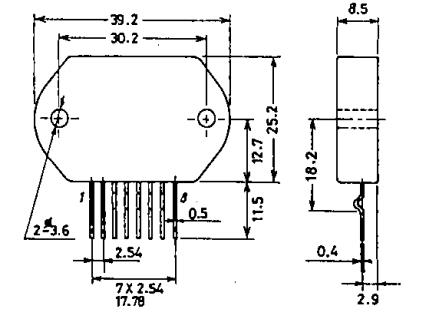

Diagrams
